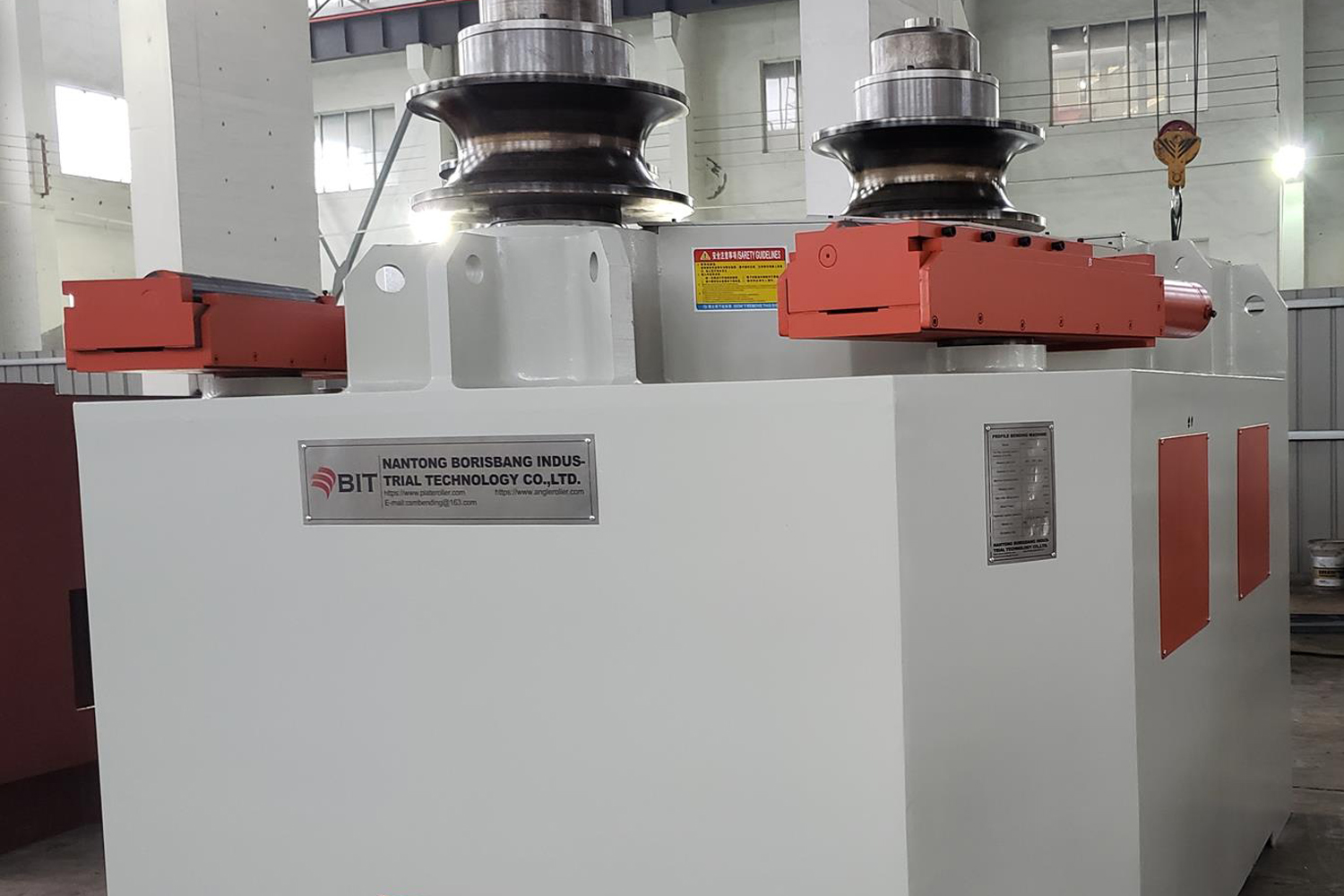

The profile bending machine is a processing equipment used for bending various special-shaped materials such as angle steel, channel steel, I-beam, flat steel, square tube, round tube, etc. It can complete the pre-bending, rolling and rounding processes of the profile at one time.

The structure of the profile bending machine is an arc downward adjustment structure. The upper roller is fixed, and the two lower rollers are respectively moved up and down in an arc relative to the upper roller around a central axis. Its function is to pre-bend the end of the profile and bend and deform the profile. At the same time, the two lower rollers are also the main transmission shafts, driven by a hydraulic motor to roll the bent and deformed profile into shape.

1. Check whether the protective device on the profile bending machine is intact. If it is not installed, it is not allowed to start. The pipe bending machine should have good grounding and electrical insulation, and the voltage should be stable.

2. Check the lubrication parts of the profile bending machine. When there is a lack of oil or no oil, the oil should be added. Then turn on the power switch and oil pressure switch of the profile bending machine, and then turn the manual and automatic switches to automatic.

3. During the empty car test run, check whether the machine is running normally and whether the electrical switch is sensitive and easy to use. After everything is normal, work can be carried out.

4. After the first bending action of the profile bending machine is completed, the operator takes out the bent pipe with his left or right hand and then steps on the start switch to return the machine to its original position.

5. When operating the profile bending machine, if the mold fails, production should be stopped immediately and the electromechanical cadres or technicians should be notified. Only after the fault is eliminated can the machine be started to continue production, and the power supply should be turned off after the work is completed.

The profile bending machine is hydraulically driven, and the lifting and lowering movements of the two rollers are centrally controlled by electricity. The digital display is concentrated on the operation table. The machine has a reasonable structure, stable performance, and good energy-saving and material-saving effects. Profile bending machines are widely used in aerospace, petrochemical, hydropower, shipbuilding, automobile manufacturing, machinery manufacturing, steel structure construction and other industries.
